The Pipe Flow Calculator (Darcy-Weisbach equation) estimates pressure drop or head loss in pipe systems based on user inputs like pipe dimensions, roughness, and fluid properties. This tool is essential for engineers and designers to ensure proper fluid transport and optimize pipe layouts for efficiency and safety. Using it involves entering values for parameters such as length, diameter, flow rate, roughness, density, and viscosity, then calculating the hydraulic losses quickly.
How to use this tool?
Complete Guide to Using the Pipe Flow Calculator (Darcy-Weisbach Equation)
This tool allows you to calculate the pressure drop in a pipe using the Darcy-Weisbach equation. Follow these steps to use the calculator effectively:
-
Pipe Length (L, meters):
Enter the total length of the pipe section you want to analyze in meters. -
Pipe Diameter (D, meters):
Fill in the internal diameter of the pipe in meters. -
Volumetric Flow Rate (Q, m3/s):
Specify the volumetric flow rate of the fluid passing through the pipe in cubic meters per second (m3/s). -
Pipe Roughness (m, meters):
Input the roughness coefficient of the pipe's internal surface. Typical values can be found in engineering tables based on pipe material (e.g., 0.00015 m for commercial steel). -
Fluid Density (r, kg/m3):
Enter the density of the fluid flowing through the pipe in kilograms per cubic meter (kg/m3). For water at room temperature, it is typically 998 kg/m3. -
Fluid Viscosity (m, Pa*s):
Fill in the dynamic viscosity of the fluid in Pascal-seconds (Pa*s). For water at room temperature, it is around 0.001 Pa*s. -
Calculate:
Double-check all your input values. Once you are ready, click the Calculate button to compute the pressure drop or related parameters.
Tips:
- Make sure all values are in the correct units as specified next to each input field.
- Refer to standard tables for accurate values of pipe roughness if you are unsure.
- Use the recommended density and viscosity values for common fluids like water if you do not have lab-measured data.
Output:
The tool will typically provide the pressure drop (DP) or head loss for the entered conditions. Review the results and adjust your parameters as needed for further analysis or optimization.
Introduction to Pipe Flow Calculations
Understanding pipe flow calculations is essential for designing efficient piping systems that minimize energy loss and optimize fluid transport. The Darcy-Weisbach equation is a fundamental formula used to calculate pressure drops caused by friction in pipes, accounting for factors such as pipe diameter, fluid velocity, and roughness. With a Pipe Flow Calculator based on this equation, you can accurately predict flow behavior and make informed decisions to improve system performance.
Overview of the Darcy-Weisbach Equation
The Darcy-Weisbach equation is a fundamental formula used to calculate pressure loss due to friction in pipe flow, expressed as DP = f(L/D)(rv2/2). It incorporates key factors such as pipe length (L), diameter (D), fluid density (r), flow velocity (v), and the friction factor (f), which depends on pipe roughness and flow regime. This equation provides accurate pressure drop estimates for both laminar and turbulent flows, making it essential for hydraulic engineering and fluid dynamics analyses.
Key Parameters for Accurate Pipe Flow Analysis
The Pipe Flow Calculator uses the Darcy-Weisbach equation to determine precise pressure drop and flow rate by analyzing key parameters such as pipe diameter, fluid velocity, roughness coefficient, and fluid viscosity. Accurate pipe flow analysis hinges on correctly inputting these variables to reflect real-world conditions and minimize calculation errors. You can optimize your fluid system's performance by ensuring each parameter is thoroughly evaluated for reliable results.
Selecting and Entering Pipe Length and Diameter
Selecting and entering the correct pipe length and diameter are critical steps in using the Pipe Flow Calculator based on the Darcy-Weisbach equation. Your input of precise measurements directly impacts the accuracy of pressure drop and flow rate calculations. Ensure that the pipe length reflects the actual system layout and the diameter matches the physical pipe used for reliable hydraulic analysis.
Setting the Volumetric Flow Rate
Setting the volumetric flow rate in a Pipe Flow Calculator using the Darcy-Weisbach equation is essential for accurate pressure drop and velocity calculations. You input the desired flow rate to determine the friction factor and head loss in the pipeline system. This parameter directly influences the efficiency and performance analysis of fluid transport in pipes.
Determining Pipe Roughness Coefficient
The Pipe Flow Calculator using the Darcy-Weisbach equation accurately determines the pipe roughness coefficient based on material type and age. You can input specific pipe characteristics to calculate friction factor, improving flow rate predictions. This precise determination helps optimize system design and maintenance scheduling.
Inputting Fluid Density and Viscosity
The Pipe Flow Calculator uses the Darcy-Weisbach equation to accurately determine pressure loss in pipes by requiring precise input of your fluid's density and viscosity. These fluid properties critically influence the Reynolds number and friction factor, ensuring reliable flow rate and head loss calculations. Accurate data entry for these parameters enables optimized pipeline design and efficient fluid transport analysis.
Step-by-Step Guide to Using the Free Online Calculator
The Pipe Flow Calculator utilizes the Darcy-Weisbach equation to accurately determine pressure loss, flow rate, or velocity in pipe systems. Input parameters such as pipe diameter, length, fluid type, and flow conditions into the free online tool to receive precise calculations. Follow the step-by-step guide by entering known variables, selecting the appropriate friction factor method, and reviewing the detailed output for optimal pipe flow analysis.
Interpreting Pressure Drop Results and Outputs
The Pipe Flow Calculator uses the Darcy-Weisbach equation to accurately determine pressure drop across pipe sections. Interpreting your pressure drop results helps identify energy losses due to friction, informing pipe design and pump sizing. Clear outputs enable you to optimize system efficiency and ensure reliable fluid transport.

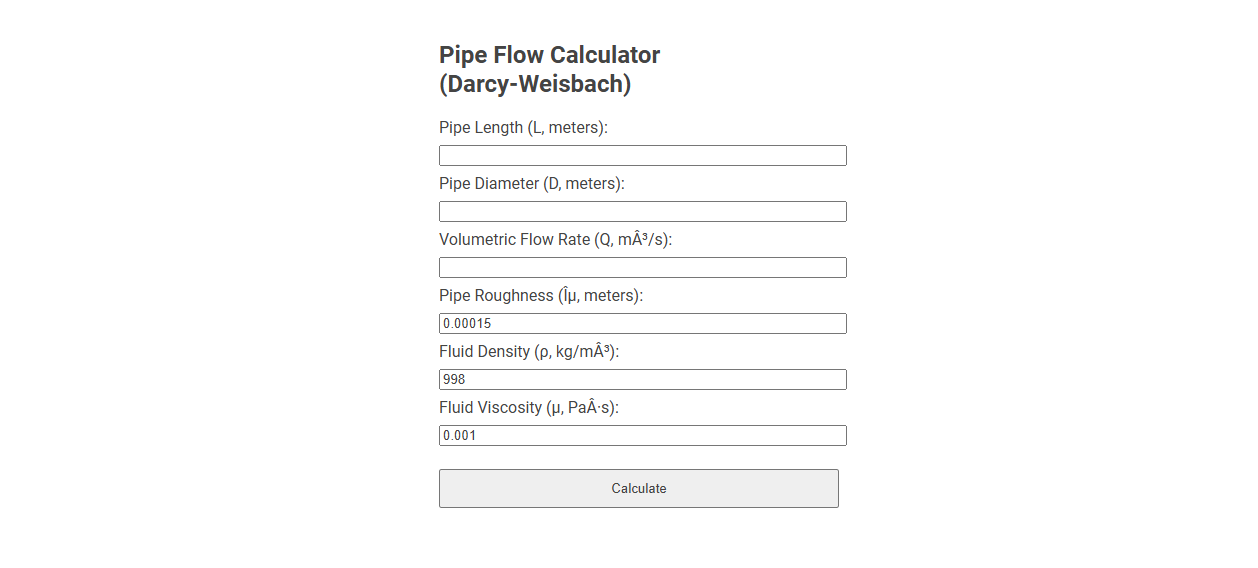

Pipe Flow Calculator (Darcy-Weisbach equation) Tool Preview
